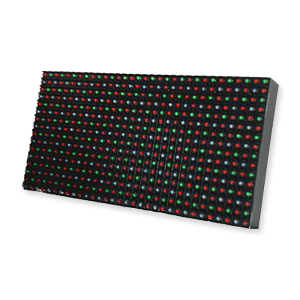

MODULE NO: P16-D01
n
模組編號: P16-D01
n
LED型號: DIP 546
1R1G1B
n
使用環境 : Outdoor IP65戶外等級
n
點距: 16
mm
n
驅動方式 : Static Constant Current 靜態恆流驅動
|
LED
Specification
|
OVAL 5mm Lamp_R
|
OVAL 5mm Lamp_G
|
OVAL 5mm Lamp_B
|
|
LED Type NO
|
DIP 546
|
DIP 546
|
DIP 546
|
|
亮度@20mA(mcd)
|
1000
|
2800
|
500
|
|
波長 (nm)
|
620~625
|
520~525
|
465~470
|
|
正向壓降 (V)
|
2.1~2.2
|
3.3~3.4
|
3.3~3.4
|
|
晶片尺寸 (mil)
|
12x12
|
15x15
|
15x15
|
|
晶片厚度 ((mil)
|
6.7
|
3.4
|
3.4
|
|
視角(2θ1/2)
|
110/40
|
110/40
|
110/40
|
|
顯示模組參數
|
規格明細
|
|
像素點距 Pixel
Pitch
|
16mm
|
|
模組解析 Module
Resolution
|
16 x 8
Pixel
|
|
像素結構 Pixel
Configuration
|
2R/1G/1B
|
|
驅動元件 LED
Driver
|
16 Bit
|
|
驅動方式 Driving
Method
|
Static
Constant Current
|
|
模組尺寸 Module
Panel Size
|
256mmx128mm
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
模組重量 Module
Panel Weight
|
1.15Kg
|
|
最佳視距 Option
Distance
|
>15M
|
|
工作電壓 Working
Voltage
|
DC +5V
|
|
最大負載 Max
Working Consumption
|
35Watt
|
|
使用壽命 Life
Time
|
>75,000.Hours
|
|
工作溫度
Operating Environment Temperature
|
-20℃~50℃
|
|
工作溼度
Operating Humidity
|
0~95%
|
|
單點亮度
Brightness Per Pixel
|
4,666mcd
|
|
模組材質
Material Of Module Frame
|
PC
|
