n 各式活動、體育競賽環狀、矮牆、矩形區塊廣告看板

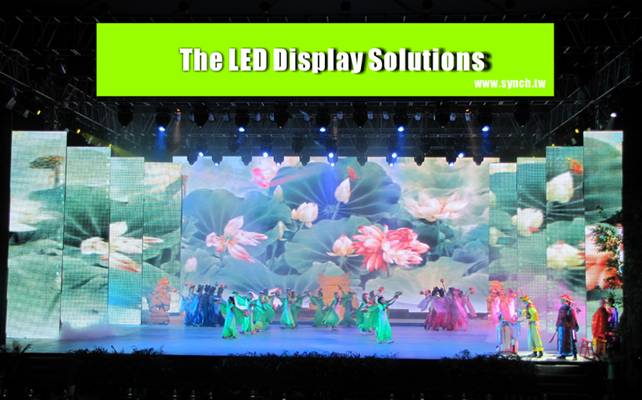

n 大型戶外舞臺背景、聲光效果動感、LIVE播放
n 產品說明會、選舉造勢活動氣份營造
n 娛樂節目、戶外演場會即時播放
n 結業畢業典禮、展覽、婚禮場所、產品發表 系統應用
|

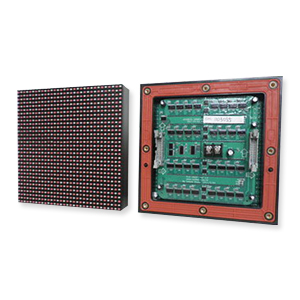

Module NO:
|
P10-D02V
|
|
LED Type:
|
DIP 346 2R1G1B
|
|
Apply Environment:
|
IP65
|
|
Pixel Pitch:
|
Real:10mm Virtual:5mm
|
|
Driving Method:
|
1/2 Scan Constant
Current
|
|
LED Specification
|
OVAL 5mm Lamp_R
|
OVAL 5mm Lamp_G
|
OVAL 5mm Lamp_B
|
|
LED型態編號
|
DIP 346
|
DIP 346
|
DIP 346
|
|
亮度@20mA(mcd)
|
650
|
1800
|
340
|
|
波長 (nm)
|
626~628
|
518~520
|
466~468
|
|
正向壓降 (V)
|
2.1~2.2
|
3.3~3.4
|
3.3~3.4
|
|
視角(2θ1/2)
|
110/40
|
110/40
|
110/40
|
|
顯示模組規格 Module Specification
|
|
ITEM
|
DESCRIPTION
|
|
像素點距 Pixel
Pitch
|
Real:10mm / Virtual:5mm
|
|
模組解析 Module
Resolution
|
16x16
Pixel
|
|
像素結構 Pixel
Configuration
|
2R/1G/1B
|
|
驅動元件 LED
Driver
|
16 Bit
|
|
驅動方式 Driving
Method
|
1/2 Duty
Constant Current
|
|
模組尺寸 Module
Panel Size
|
160mmx160mm
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
模組重量 Module
Panel Weight
|
600g
|
|
最佳視距 Option
Distance
|
>8M
|
|
工作電壓 Working
Voltage
|
DC +5V
|
|
最大負載 Max
Working Consumption
|
50Watt
|
|
使用壽命 Life
Time
|
>75,000.Hours
|
|
工作溫度
Operating Environment Temperature
|
-20℃~50℃
|
|
工作溼度 Operating
Humidity
|
0~95%
|
|
單點亮度
Brightness Per Pixel
|
2,700mcd
|
|
模組材質
Material Of Module Frame
|
PC
|
|

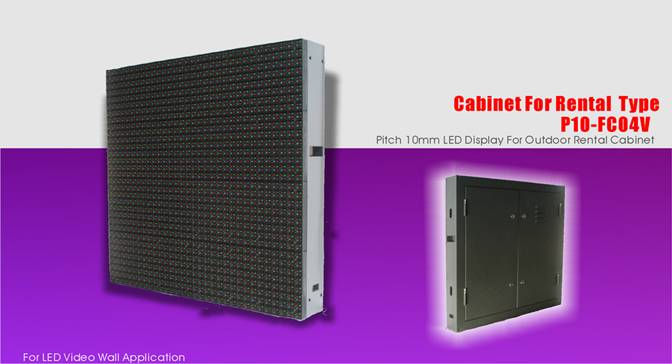

箱體規格Cabinet Specification
|
DESCRIPTION
|
|
箱體像素 Cabinet
Pixel
|
Real:64 x
48 / Virtual:128 x 96 Pixel
|
|
物理解析
Physical Resolution
|
10,000
Pixel / ㎡
|
|
箱體尺寸 Cabinet
Dimension (HxWxD)
|
640 x 480
x 150 mm
|
|
箱體重量 Weight (Aluminum)
|
20 Kg
|
|
最大亮度 Typical
Brightness (Full White)
|
>5,600
nits
|
|
可視角度 Viewing
Angle(H/V)
|
110/45
Degree @ 1/2 Brightness
|
|
環境係數 Front
Module Weather Proof
|
IP65
|
|
最大負載 Max
Power Consumption
|
1,800
Watts /m²
|
|
平均負載 Average
Power Consumption
|
600
Watts /m²
|
|
訊號連接線 Signal’s Cable Between Cabinet
|
Cat’5
RJ-45
|
|
訊號線最大長度 Max
Link Cable Length
|
100 M
|
|
支持顏色 Gray
Scale Colors
|
10 Bit
Depth Color
|
|
工作刷新率 Refresh
Rate
|
10
Hz~300Hz Adjustable
|
|
亮度控制
Brightness Control
|
100
Level By Software
|
|
交流電源 AC
Operating Power Voltage
|
110V/60Hz;220V/50Hz
|
|
電腦顯示介面 PC
Display Interface Require
|
DVI
(ATI/nVIDIA)
|
|
電腦作業系統 PC
Operating System
|
MS
Windows Series Product
|
